    Satellite Data
    Multiplexer/Demultiplexer

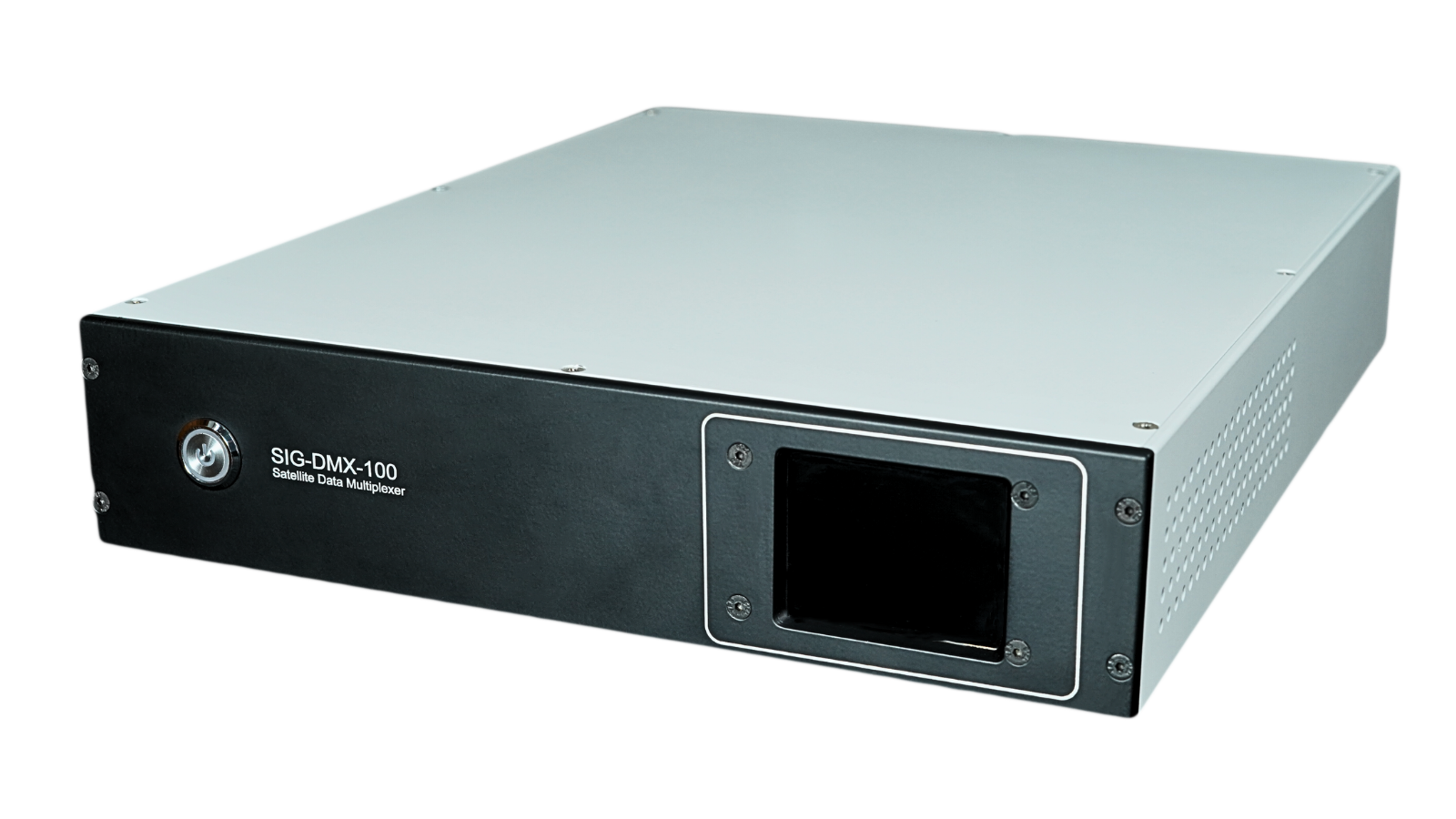

SIG-DMX-100

Signatics SATCOM data multiplexer combines the functionality of a data router, data multiplexer and a voice gateway on a single device. It multiplexes data from various analog and digital interfaces over a single line while maintaining low bandwidth and ensuring quality of service.

Features
  • Data Encryption/Decryption with runtime configurable Key
  • Voice data compression
  • Automatic Node discovery for Serial Communication
  • Automatic Data routing, optimized for limited bandwidth usage
  • Embedded SIP Server
  • POE compatible

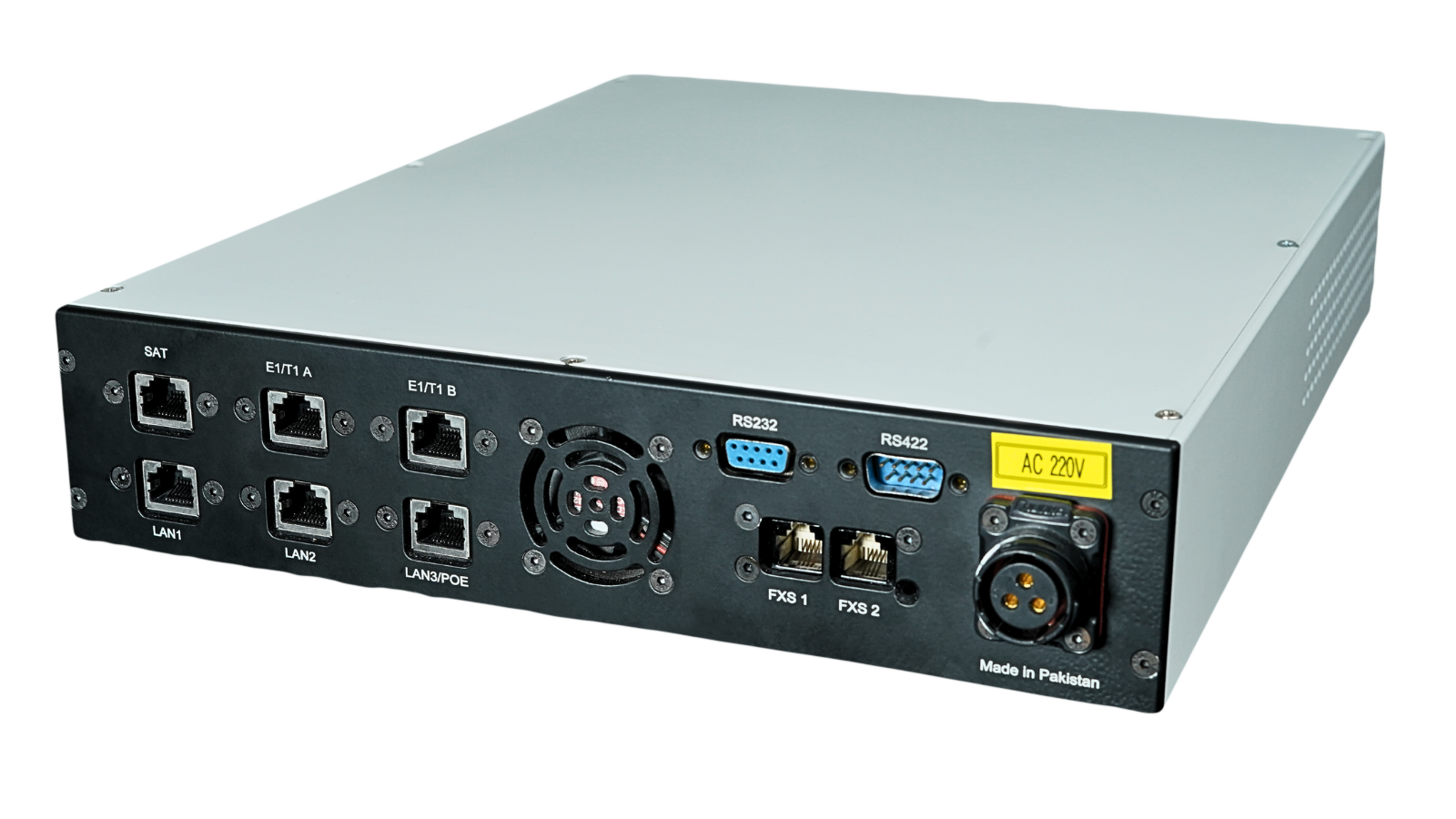

Interfaces
  • 2x RJ11 FXS interfaces
  • 1x RJ45 POE/digital voice channel
  • 1x Satellite network RJ45
  • 2x LAN Gateway RJ45
  • 2x RS232 Serial Communication Interface
  • 2x RS422 serial Communication Interface
  • 2x E1/T1 (Production)
Technical Specs
Power < 15W, AC 110-220V  (without POE)
Weight < 3 kg
Operating Temperature Commercial (-10 – 50 C)
Industrial (-40 – 85 C)
Dimensions 11x14x2.5 inches
Bandwidth Network: 100 Mbps
Serial: 1 Mbps
Voice Compression Ratio 4x, 8x, 16x
Data Encryption AES-256
