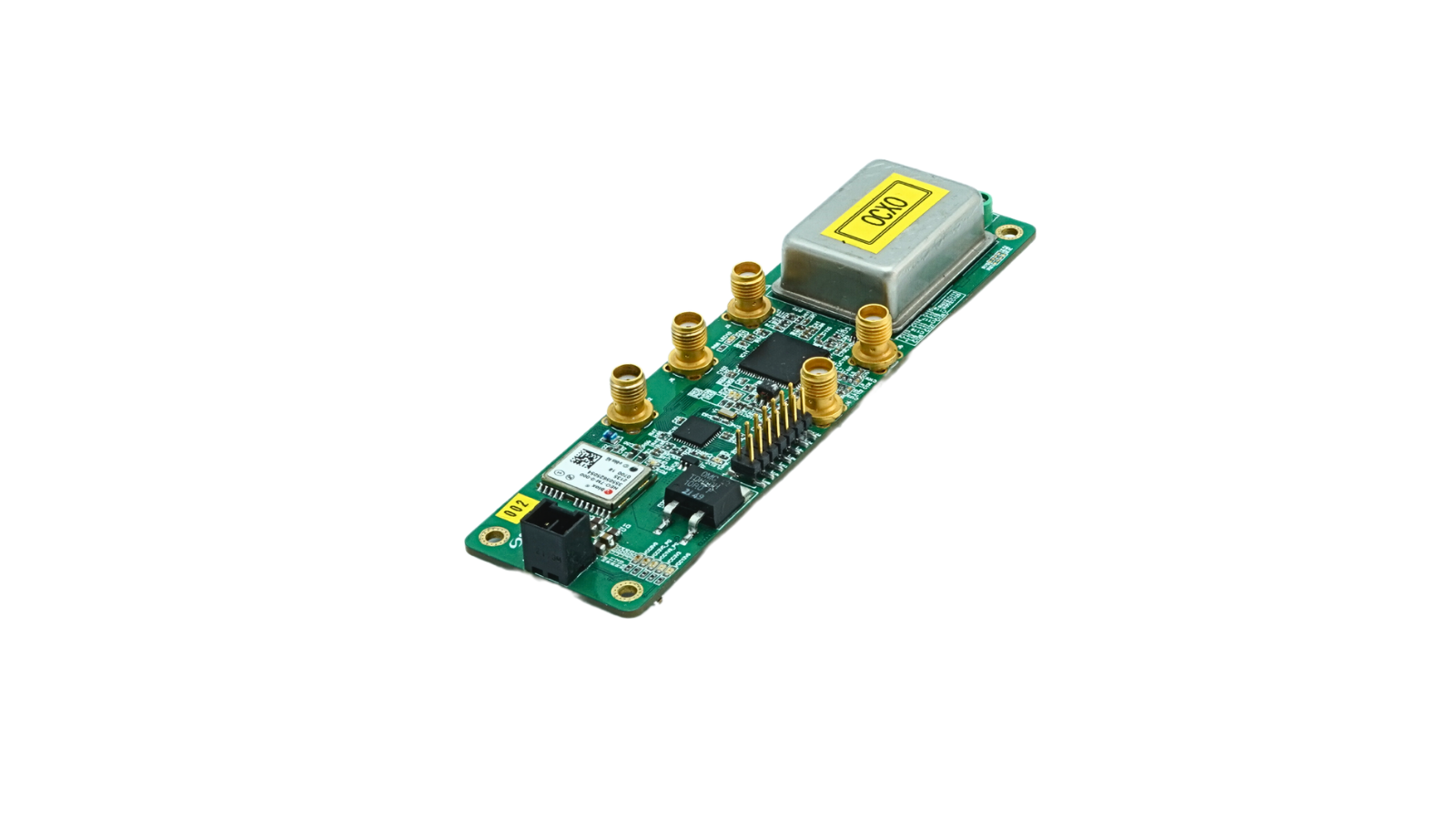

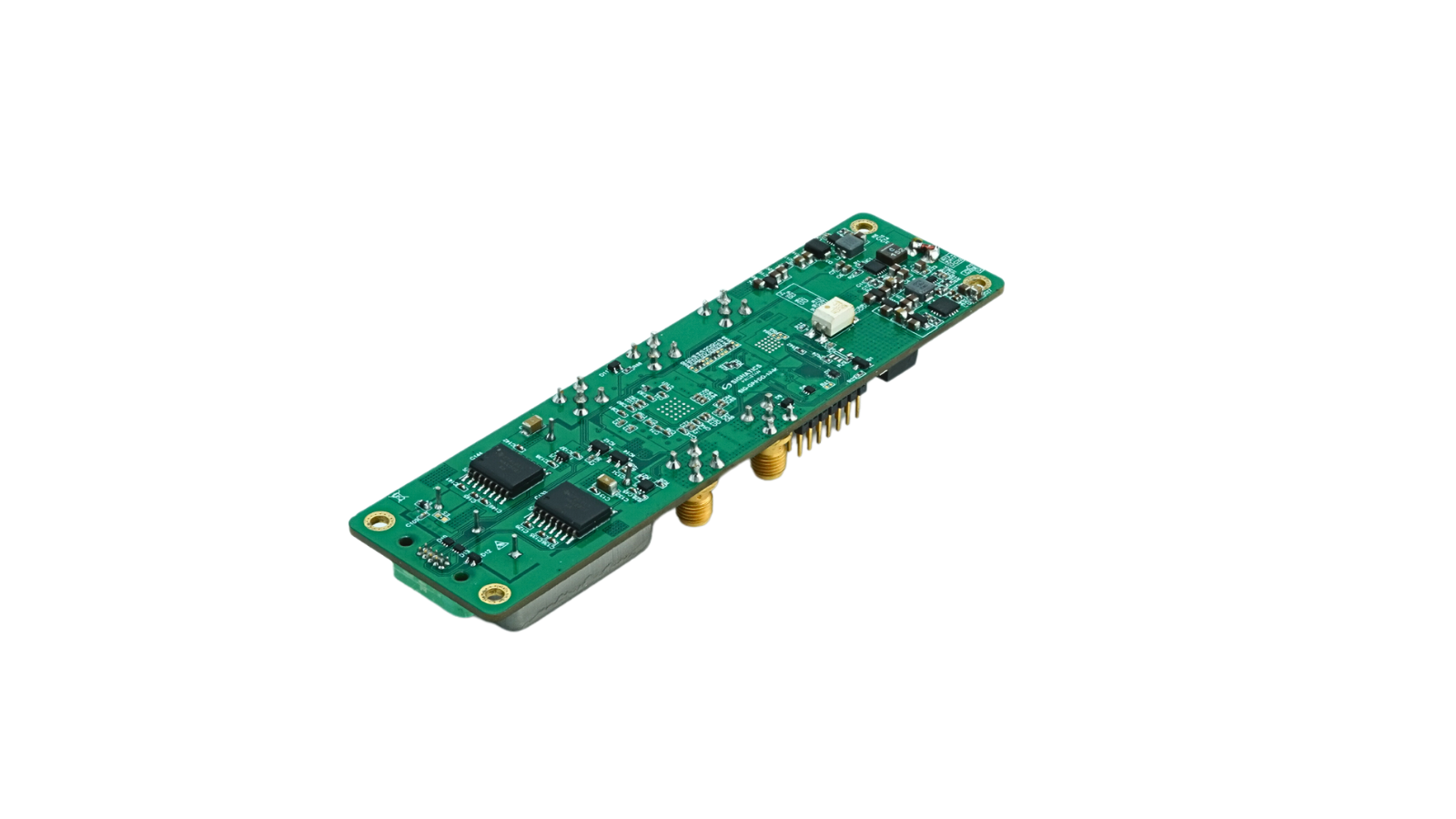

• SIG-GPSDO-10

    GPS Disciplined Oscillator

SIG-GPSDO-10

High precision timing reference generation is required in many wireless applications like TDMA networks, spectrum monitoring, Signal Interception, Radio Base-stations and wideband data links. Signatics GPSDO modules are precision timing sources with a compact form factor, which provide accurate timing in hold-over for environments with inconsistent GNSS reception. Base on hold-over accuracy requirement, user can choose from two different models with single and double OCXO options.

Features
  • 3x TTL and 3x RS-232 level PPS out
  • TTL and RS-232 level NMEA sentence out
  • 2x Configurable reference generation (1-50 MHz)
  • Commercial and Industrial grade options
  • Ref In port to daisy-chain multiple modules for >2x reference generation
  • Stratum2 stability in hold-over mode
Applications



  • TDMA Networks
  • Wireless Base-station and Gateways
  • Wideband modems
  • SATCOM
Technical Specs
Specifications GPSDO-10M GPSDO-10C
Holdover Stability < 2 ppb < 0.5 ppb
PPS holdover drift at 25C, after 15 minute with GPS lock < 2 μs per hr < 1 μs per hr
Operating Voltage 5V DC
Power Consumption (after crystal warmup time typically 30 sec) 6W
Frequency Accuracy Absolute 100 ppb
Temperature Drift: 25 ppb (-10 – 70 C)
Operating Temperature Commercial (-10 – 50 C)
Industrial (-40 – 85 C)
Dimensions 5X1.5 inches
