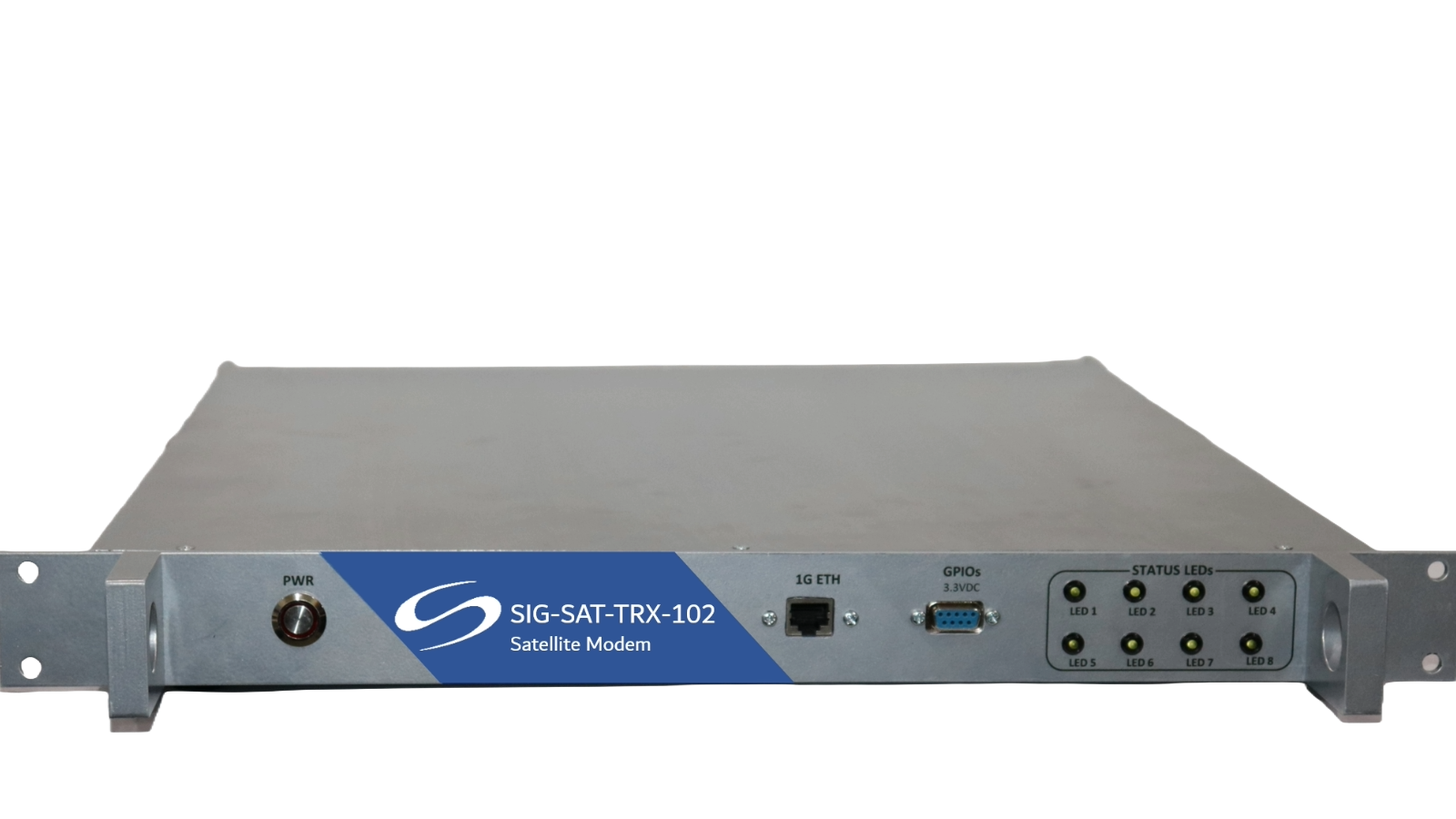

SIG-SAT-TRX-102
SIG-SAT-TRX-102 is a single channel satellite modem with support for various waveforms including IESS-308, IESS-309, and custom waveforms. With integrated BUC and LNB support, the device can be connected with any off-the-shelf antenna system.
Related platform: SIG-SDR-106
Sub-modules
SIG-SDR-116, SIG-BUC-10, SIG-LNB-10, SIG-PWR-AD-10
Features
|
|
|
|
|
|
Interfaces
|
|
|
|
Technical Specs
| IF Frequency Range | 50MHz-2500 MHz |
| IBW | 50 MHz |
| Number of IF Channel | 1 |
| Number of demod chain | 2 |
| Baud Rate per demod chain | Up to 20MHz |
| Data Rate per demod chain | Up to 40 Mbps |
| Modulation | BPSK, QPSK, 8PSK, 16-QAM |
| FEC | Viterbi (1/2, 3/4 , 7/8) Reed-Solomon TPC (1/2, 3/4, 7/8) LDPC |
| Operating Temperature | Commercial (-10 – 50 C) Industrial (-40 – 85 C) |
| Dimensions | 1U 19 inch rack compatible |
| Operating Voltage | AC 110-220V or 24VDC |
