SIG SDR-1000
SIG SDR-1000 is a high-end 8-channel Transmit and Receive compact platform with up to 2 GHz IBW. With phase alignment feature, multiple SDR-1000 modules can be cascaded to form higher channel count systems such as phased arrays or massive-MIMO. High-speed digital interfaces enable data exchange between multiple SDR-1000s or off-loading data at speeds up to 100 Gbps.
Features
|
|
|
|
|
|
|
|
|
Applications
|
|
|
|
Technical Specs
| RF Architecture | Direct Conversion |
| RF Configuration | 8-CH Direct RF/IF Sampling and Generation |
| IBW | 2 GHz per channel |
| Frequency | 2 kHz – 3GHz |
| Frequency Accuracy | Absolute 100 ppb Temperature Drift: 25 ppb (-10 – 70 C) |
| Noise Figure | — |
| Operating Temperature | Commercial (-10 – 50 C) Industrial (-40 – 85 C) |
| Dimensions | 7×5 inches |

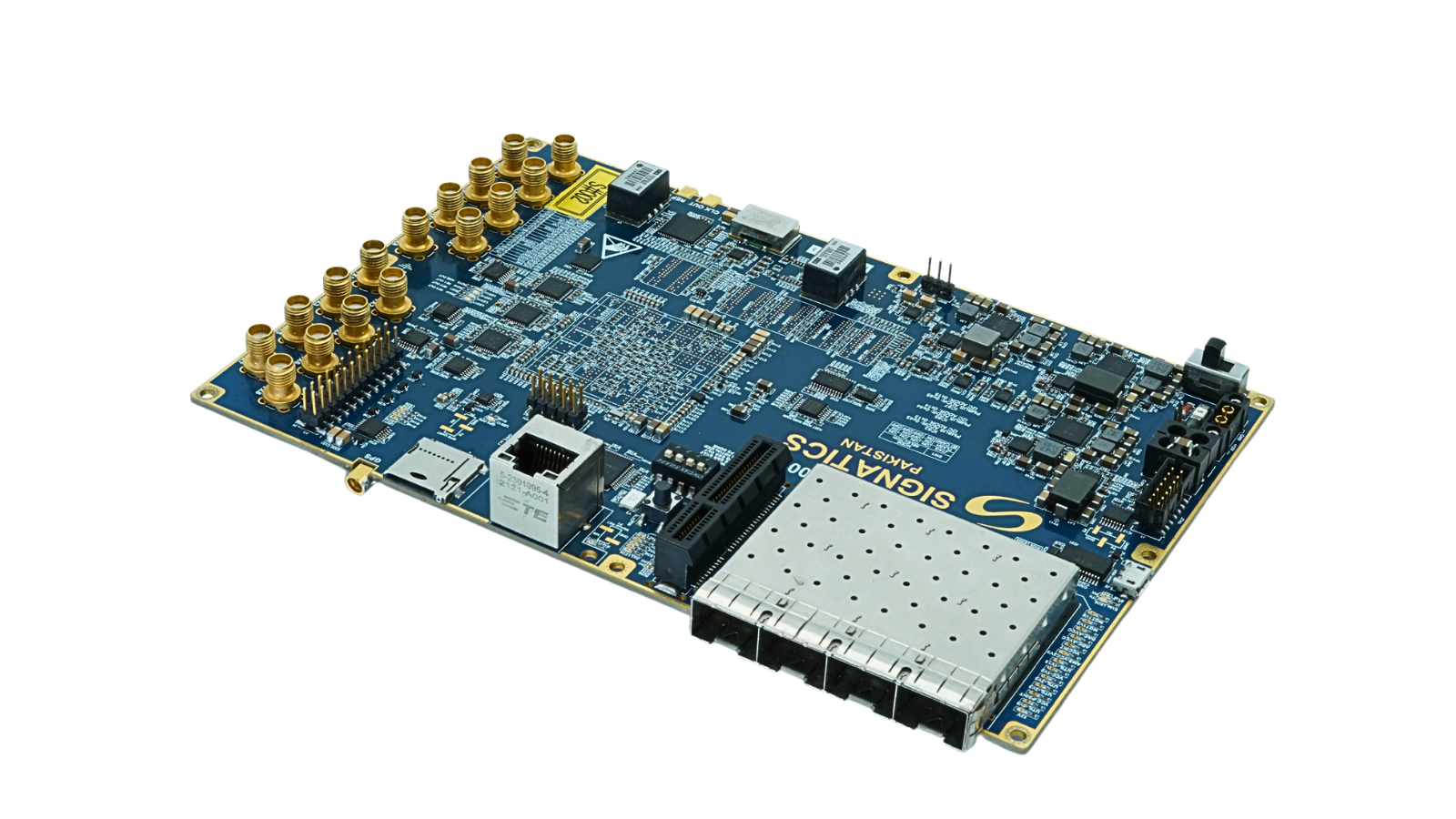

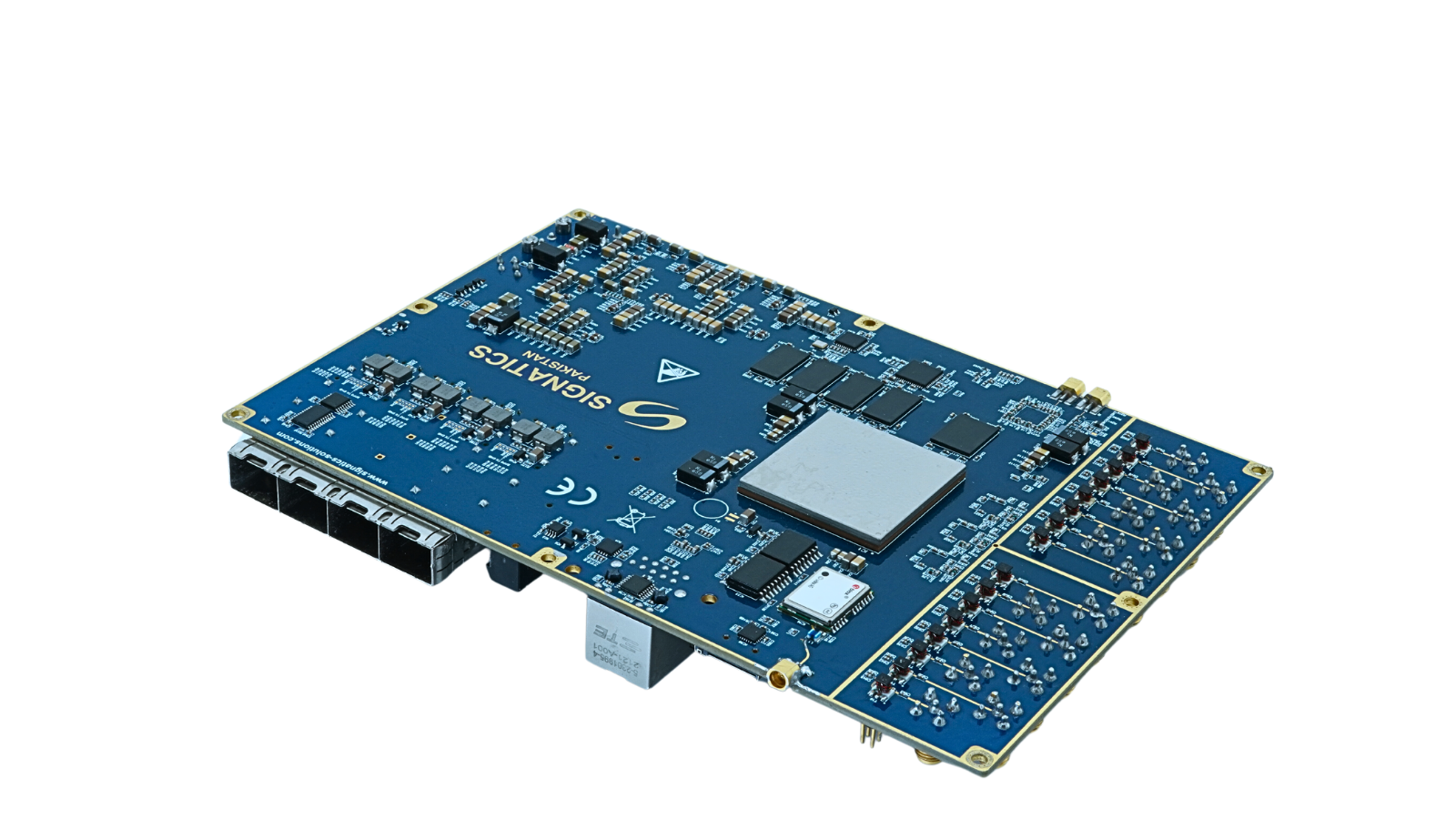

Product Images
