SIG SDR-102
SIG SDR-102 is a mid-level SDR offering 200 MHz IBW for frequencies up to 6 GHz. The integrated USB and display ports make it ideal for lab prototyping and applications requiring integrated display options. Sizeable FPGA fabric allows enough resources to process 2×2 MIMO signals in real-time while the ARM Cores can run both bare-metal and Linux. High-speed digital interfaces allow off-loading data to other platforms at speeds up to 20 Gbps.
Features
|
|
|
|
|
|
|
|
|
Applications
|
|
|
Technical Specs
| RF Architecture | Direct Conversion |
| RF Configuration | 2 Tx, 2 Rx with shared LO |
| IBW | 200 MHz per channel |
| Frequency | 65 MHz – 6 GHz |
| Frequency Accuracy | Absolute 100 ppb Temperature Drift: 25 ppb (-10 – 70 C) |
| Noise Figure | < 4 dB with pre-amp |
| Operating Temperature | Commercial (-10 – 50 C) Industrial (-40 – 85 C) |
| Dimensions | 8×4 inches |

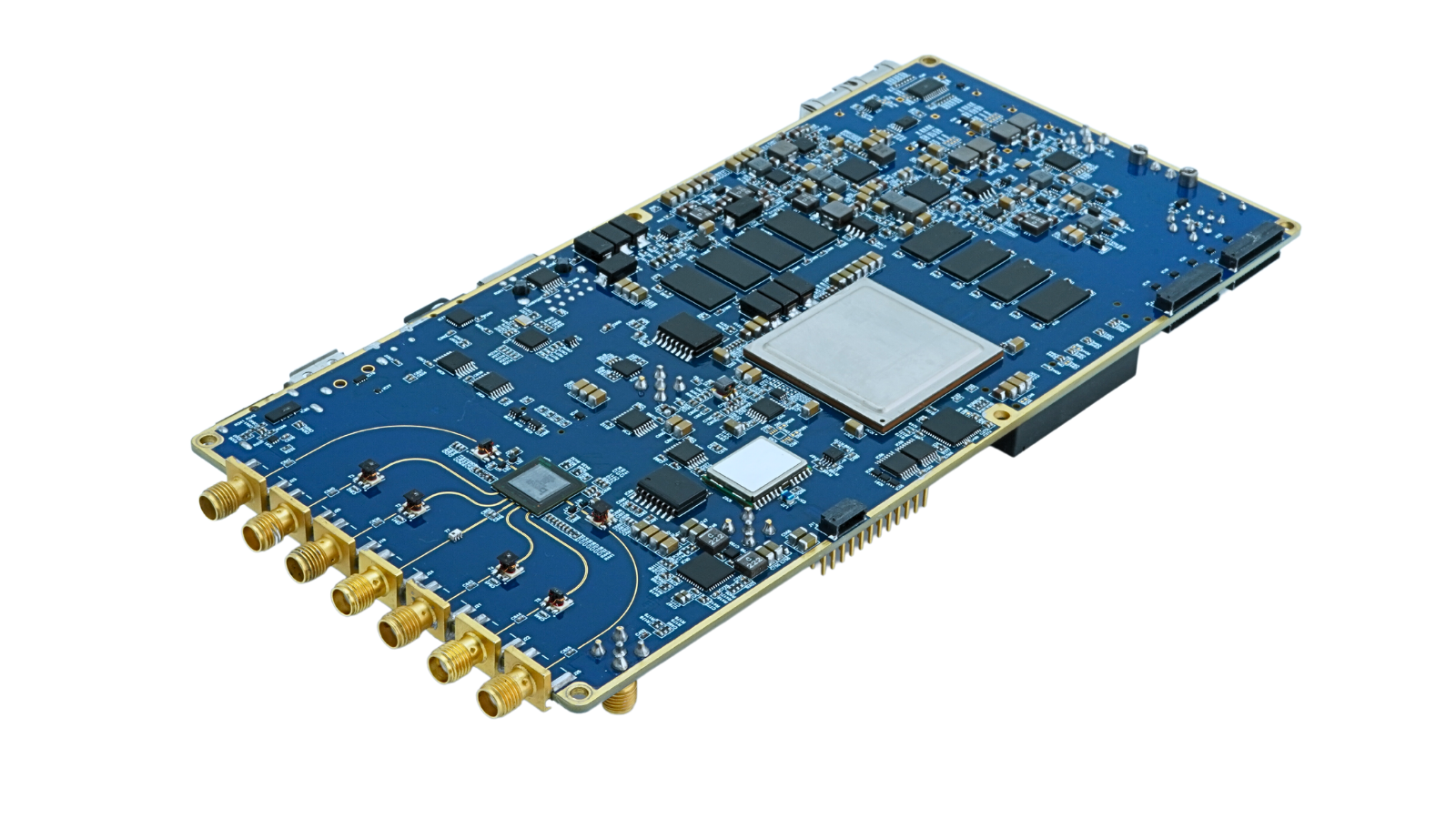

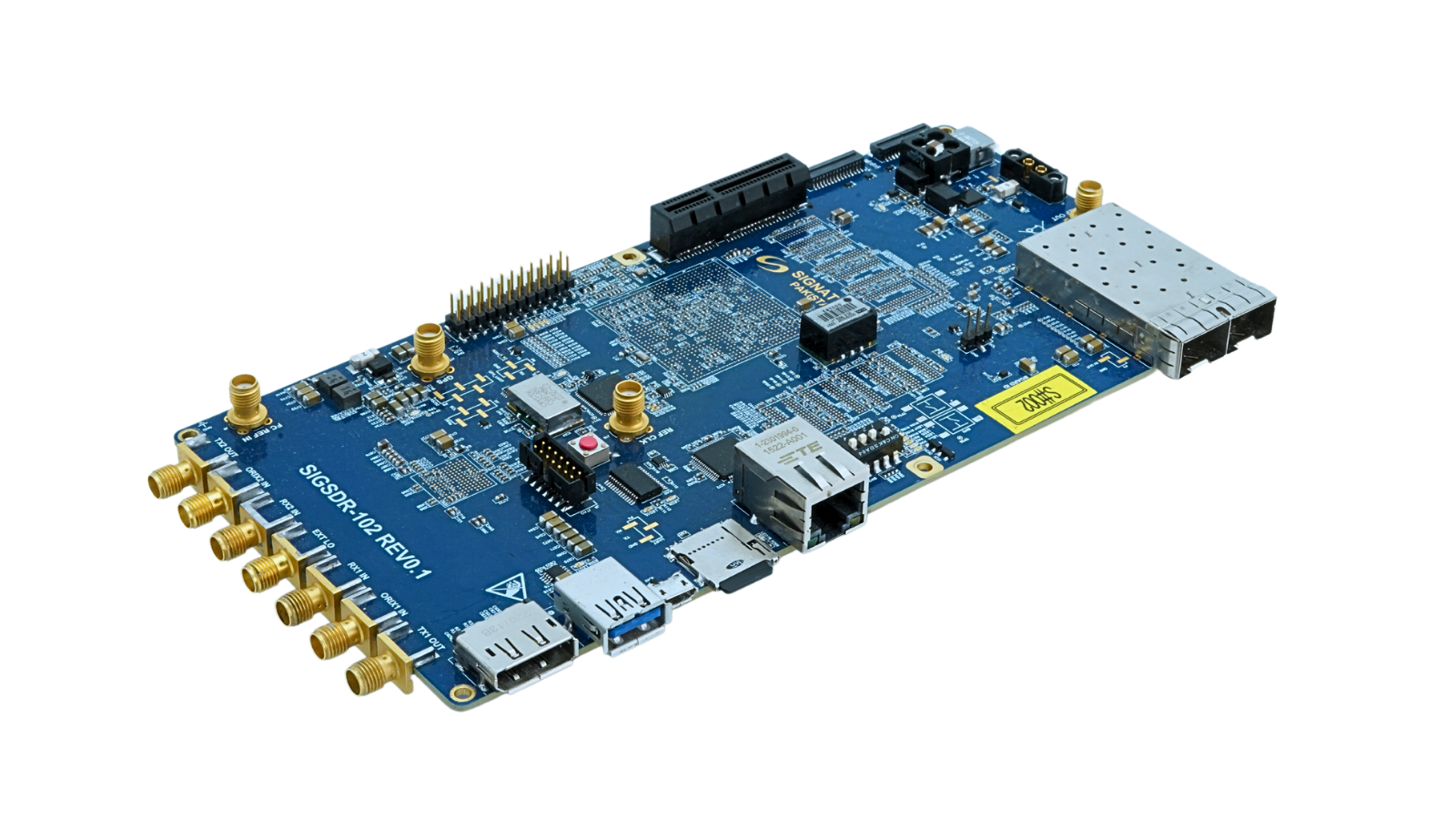

Product Images
