• SIG-SDR-106

    6x6 SDR with
    50 MHz IBW

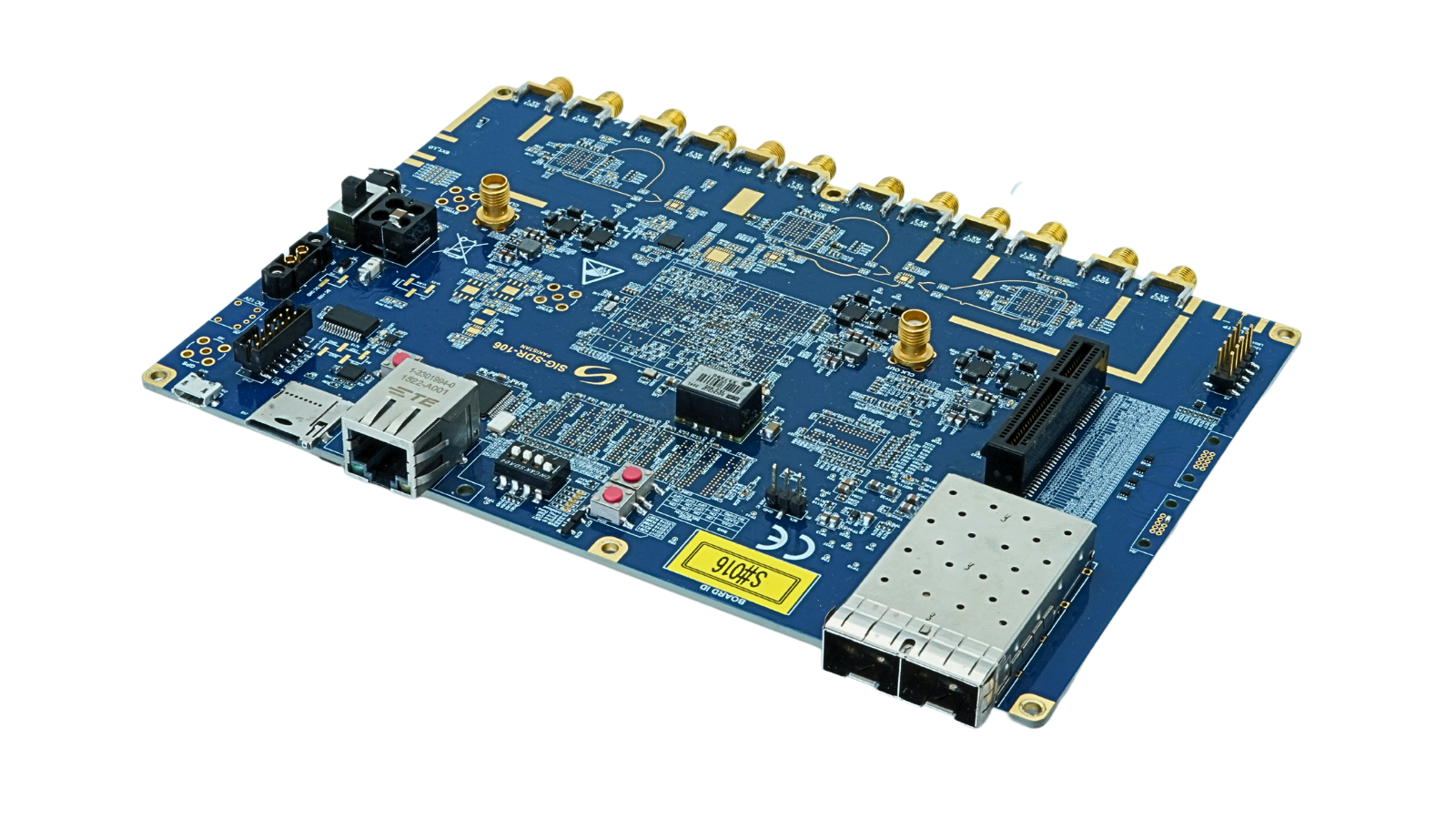

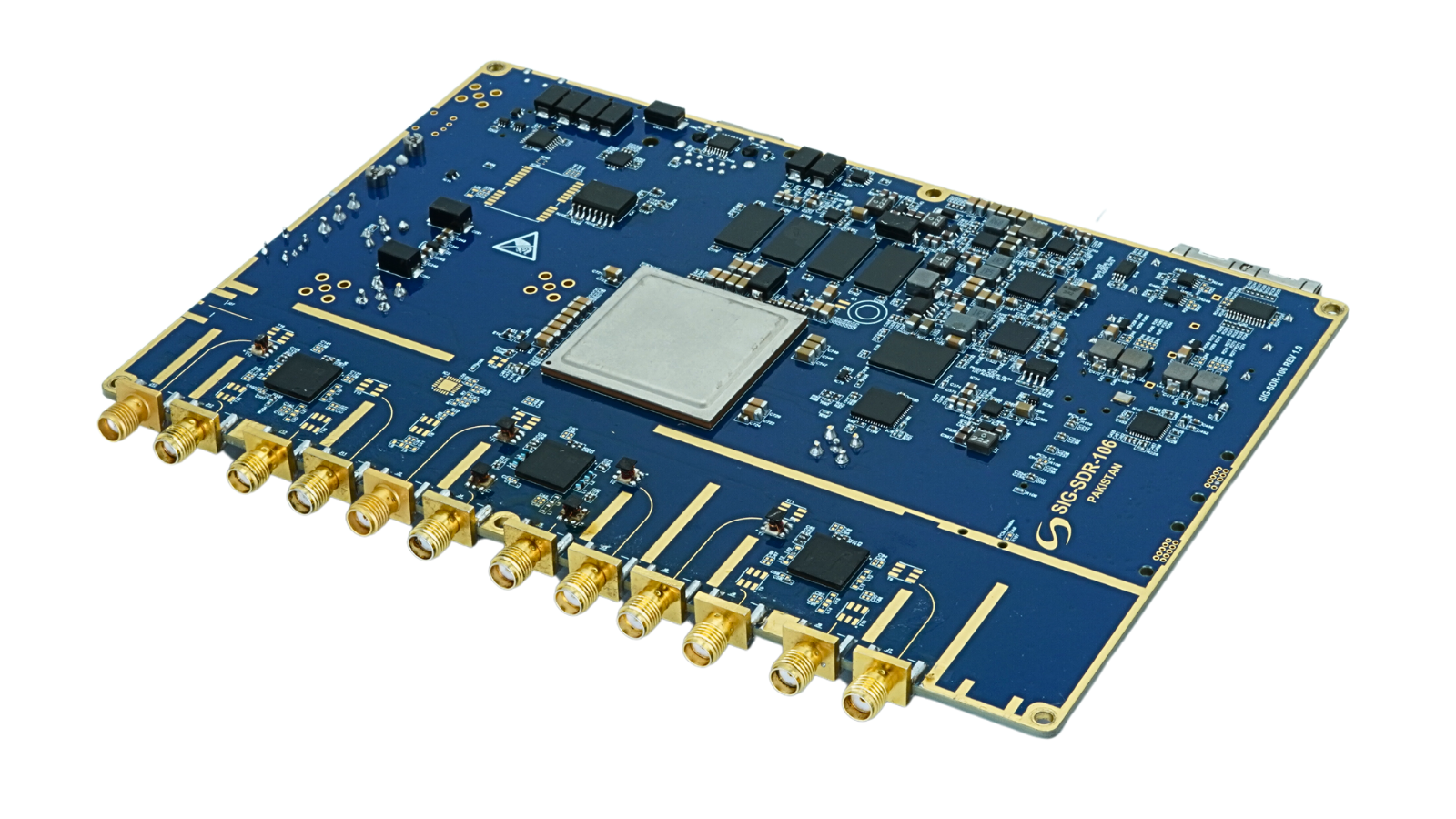

SIG-SDR-106

SIG SDR-106 is a low-profile SDR for high-channel count applications. With 50 MHz IBW per channel, a sizeable FPGA fabric and on-board ARM cores, SIG SDR-106 is well-suited for applications for demanding wireless applications. With optional phase alignment feature, multiple SDR-106 can be cascaded to form higher (>6) channel count systems such as phased arrays or massive-MIMO.

Features
  • 6×6 50 MHz RF Front-End
  • On-board FPGA and ARM Cores
  • 64-bit, 8 GB DDR4
  • Configuration via Flash, SD-Card and Ethernet
  • OS for ARM Cores: Ubuntu/Debian, RTOS, Bare Metal
  • Interfaces: 2x10Gig SFP, x4 Gen2 PCIe, Display Port, USB, GPIOs
  • Online CAL for phase alignment (Optional)
  • On-board GNSS
  • Over current, temperature, voltage monitoring and protection
Applications



  • High channel count MIMO Transceivers
  • 4G, 5G prototyping
  • Phase-aligned signal acquisition and generation
  • Radio Direction Finding
Technical Specs
RF Architecture Direct Conversion
RF Configuration 6 Tx, 6 Rx with independent Tx/Rx LO
IBW 50 MHz per channel
Frequency 55 MHz – 6 GHz
Frequency Accuracy Absolute 100 ppb
Temperature Drift: 25 ppb (-10 – 70 C)
Noise Figure < 4 dB
Operating Temperature Commercial (-10 – 50 C)
Industrial (-40 – 85 C)
Dimensions 7×5 inches
